… an ultimate kayak fishing paddle

Blade surface area:	547 cm2
Shaft diameter:	30 mm

1/ Hook – helps to pull your boat to the bank or to pull other objects closer to your boat.
2/ Fishing line groove – helps to release a stuck fishing line from the water or branches.
3/ Rough edge – makes it easier to shove off.

Blade surface area:	PAG – glass reinforced polyamide (?)
Available blade colours:
Lengths:	180 – 260 cm Choose the right length…
Shaft materials: (?)	dural, fiberglass, sanded fiberglass, carbon The ends of fiberglass shafts are carbon-reinforced.
Options:	one-piece, two-piece split with spring-button ferrule, YP ferrule or Z ferrule

Determining the right paddle length for kayak fishing:
In the following table you will find default values. For a narrower boat or a shorter paddler subtract 5cm for the “high angle” option  and 10cm for the “low angle” option.

Paddler		under 180 cm	over 180 cm
LOW ANGLE	boat width	paddle length
Kajak	over 70 cm	230 cm	240 cm
Sit On Top	70-120 cm	230 cm	240 cm
Raised seat Sit On Top	75-120 cm	250 cm	260 cm

Paddler		under 180 cm	over 180 cm
HIGH ANGLE	boat width	paddle length
Kajak	over 70 cm	220 cm	230 cm
Sit On Top	70-120 cm	220 cm	230 cm
Raised seat Sit On Top	75-120 cm	240 cm	250 cm



Catch: one-piece paddle

shaft	ø 30 mm	type	weight (g)*
	dural	709F.0	1030
	fiberglass	719F.0**	880
	sanded fiberglass	719F.0X**	880
	carbon	729F.0	810



Catch: two-piece split with spring-button ferrule (?)

shaft	ø 30 mm	type	weight (g)*
	dural	709F.2	1080
	fiberglass	719F.2**	930
	sanded fiberglass	719F.2X**	930
	carbon	729F.2	860

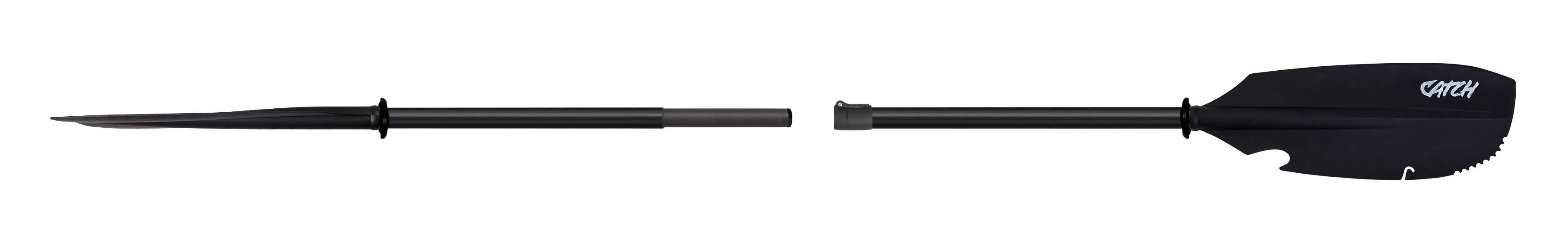

Catch: two-piece split with YP ferrule (?)

shaft	ø 30 mm	type	weight (g)*
	fiberglass	719F.2YP**	960
	sanded fiberglass	719F.2YPX**	960
	carbon	729F.2YP	890



Catch: two-piece split with Z ferrule (?)



shaft	ø 30 mm	type	weight (g)*
	dural	709F.2Z	1130
	fiberglass	719F.2Z**	960
	sanded fiberglass	719F.2ZX**	960
	carbon	729F.2Z	890

* Weight at length 200 cm.
** The ends of fiberglass shafts are carbon-reinforced.
