… a kayak touring paddle for the sea and lakes

	Pyxis	Pyxis Light
Blade surface area:	604 cm2	604 cm2
Shaft diameter:	30 mm	28 mm

Blade material:	PAG – Glass reinforced polyamide (?)
Available blade colours:
Lengths:	180 – 240 cm Choose the right length…
Shaft material: (?)	dural, fiberglass, sanded fiberglass, carbon, sanded carbon The ends of fiberglass shafts are carbon-reinforced.
Options:	one-piece, two-piece split with spring-button ferrule, YP ferrule or Z ferrule



Pyxis / Pyxis Light: one-piece paddle

shaft	ø 30 mm ø 28 mm	type	weight (g)*
	dural	709.0 609.0 Light	1040 970
	fiberglass	719.0** 619.0 Light	890 850
	sanded fiberglass	719.0X** 619.0X Light	890 850
	carbon	729.0 629.0 Light	820 770
	sanded carbon	729.0X 629.0X Light	820 770

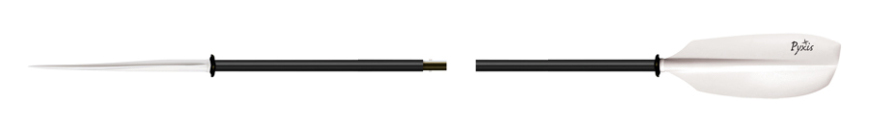

Pyxis / Pyxis Light: two-piece paddle with spring-button ferrule  (?)

shaft	ø 30 mm ø 28 mm	type	weight (g)*
	dural	709.2 609.2 Light	1090 1020
	fiberglass	719.2** 619.2 Light**	940 900
	sanded fiberglass	719.2X** 619.2X Light**	940 900
	carbon	729.2 629.2  Light	870 820
	sanded carbon	729.2X 629.2X  Light	870 820

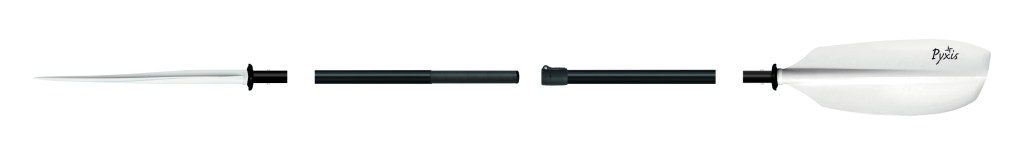

Pyxis / Pyxis Light: two-piece paddle with YP ferrule  (?)

shaft	ø 30 mm ø 28 mm	type	weight (g)*
	fiberglass	719.2YP** 619.2YP  Light**	970 930
	sanded fiberglass	719.2YPX** 619.2YPX  Light**	970 930
	carbon	729.2YP 629.2YP  Light	900 850
	sanded carbon	729.2YPX 629.2YPX  Light	900 850

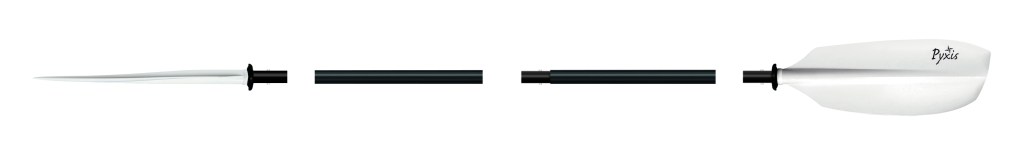

Pyxis / Pyxis Light: two-piece paddle with Z ferrule (?)

shaft	ø 30 mm ø 28 mm	type	weight (g)*
	dural	709.2Z 609.2Z Light	1120 1050
	fiberglass	719.2Z** 619.2Z Light**	970 930
	sanded fiberglass	719.2ZX** 619.2ZX Light**	970 930
	carbon	729.2Z 629.2Z Light	900 850
	sanded carbon	729.2ZX 629.2ZX Light	900 850

* Weight at length 220 cm.
** The ends of fiberglass shafts are carbon-reinforced.
